Red Lion Graphite G07S0000 7″ Color Touchscreen HMI — Complete Product Guide
The Red Lion Graphite G07S0000 is a powerful 7-inch color touchscreen HMI (Human Machine Interface) from Red Lion Controls’ Graphite series — one of the most versatile and rugged operator panels available for industrial automation, marine control systems, and hazardous area applications. The Red Lion G07S0000 combines an intuitive touchscreen interface with a modular I/O expansion architecture, making it a preferred choice for machine builders, system integrators, and marine automation engineers worldwide who need a flexible, reliable HMI platform.
🔧 How It Works
The Red Lion Graphite G07S0000 HMI operates as the operator interface and data gateway in automation systems. The front 7-inch color touchscreen allows operators to monitor process data, control equipment, view alarms, and navigate between screens. Internally, the Graphite HMI runs Red Lion’s Crimson 3.x software environment — which supports data logging, alarm management, trending, recipe management, and multi-protocol communications simultaneously.

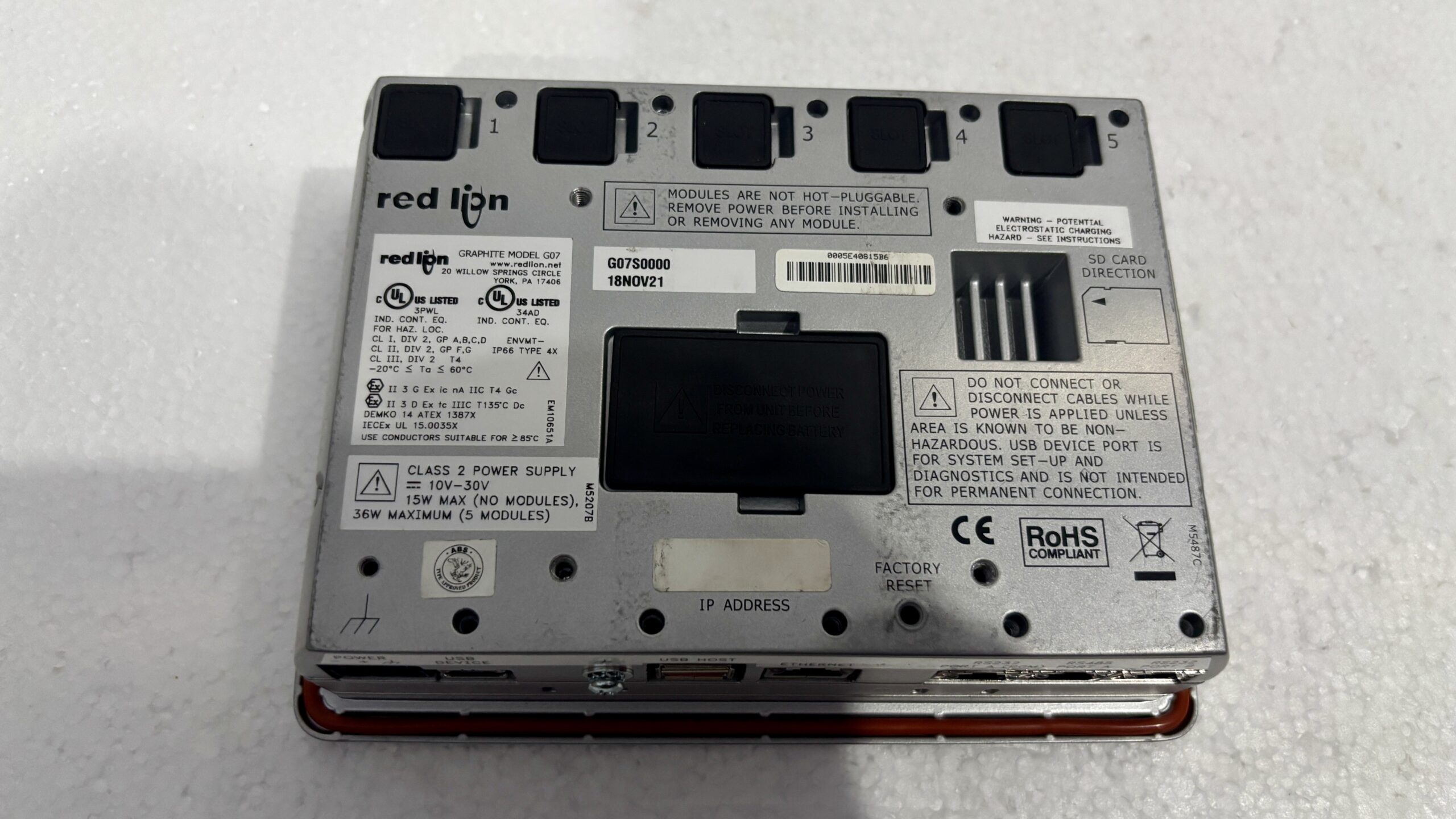

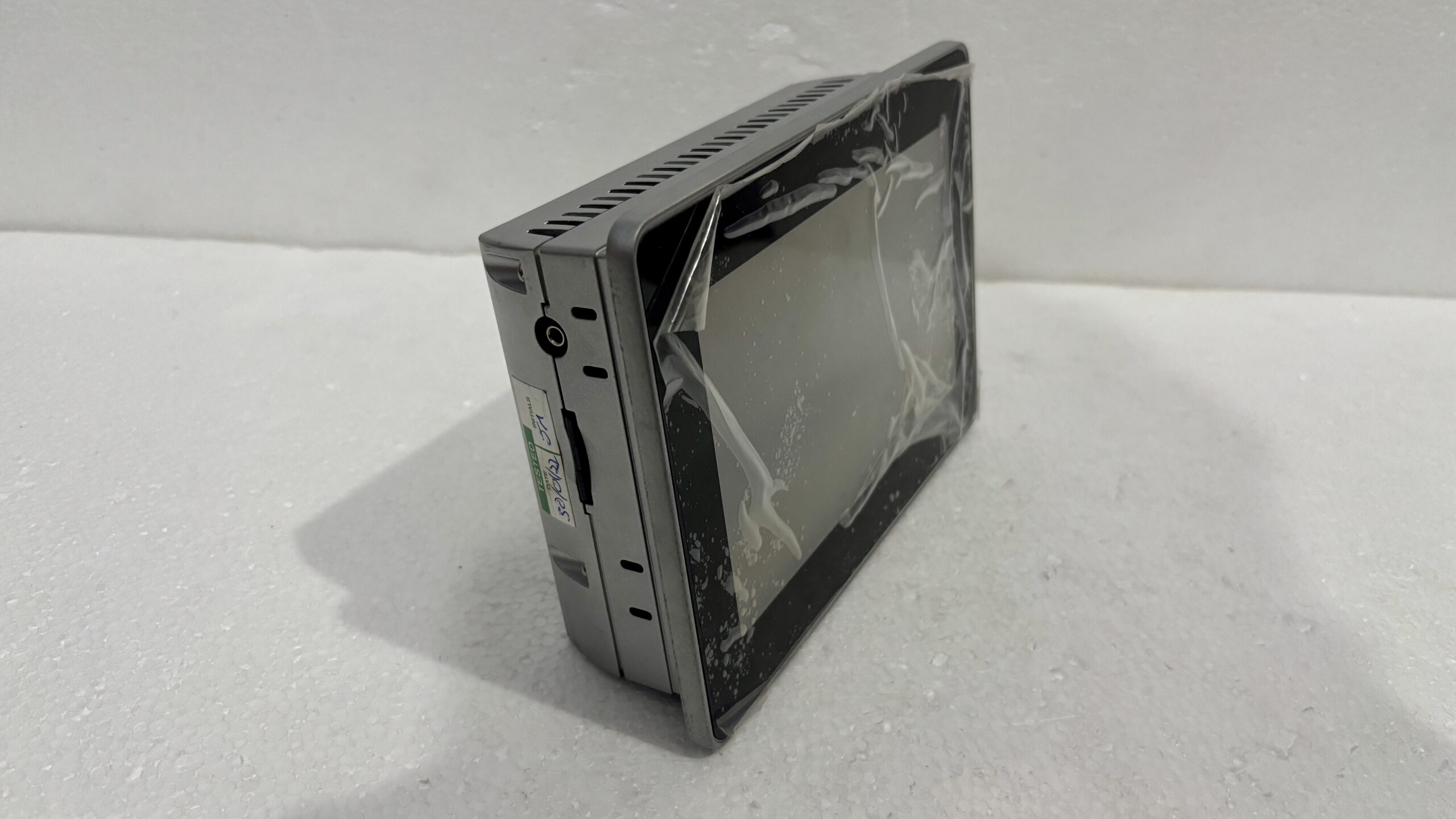

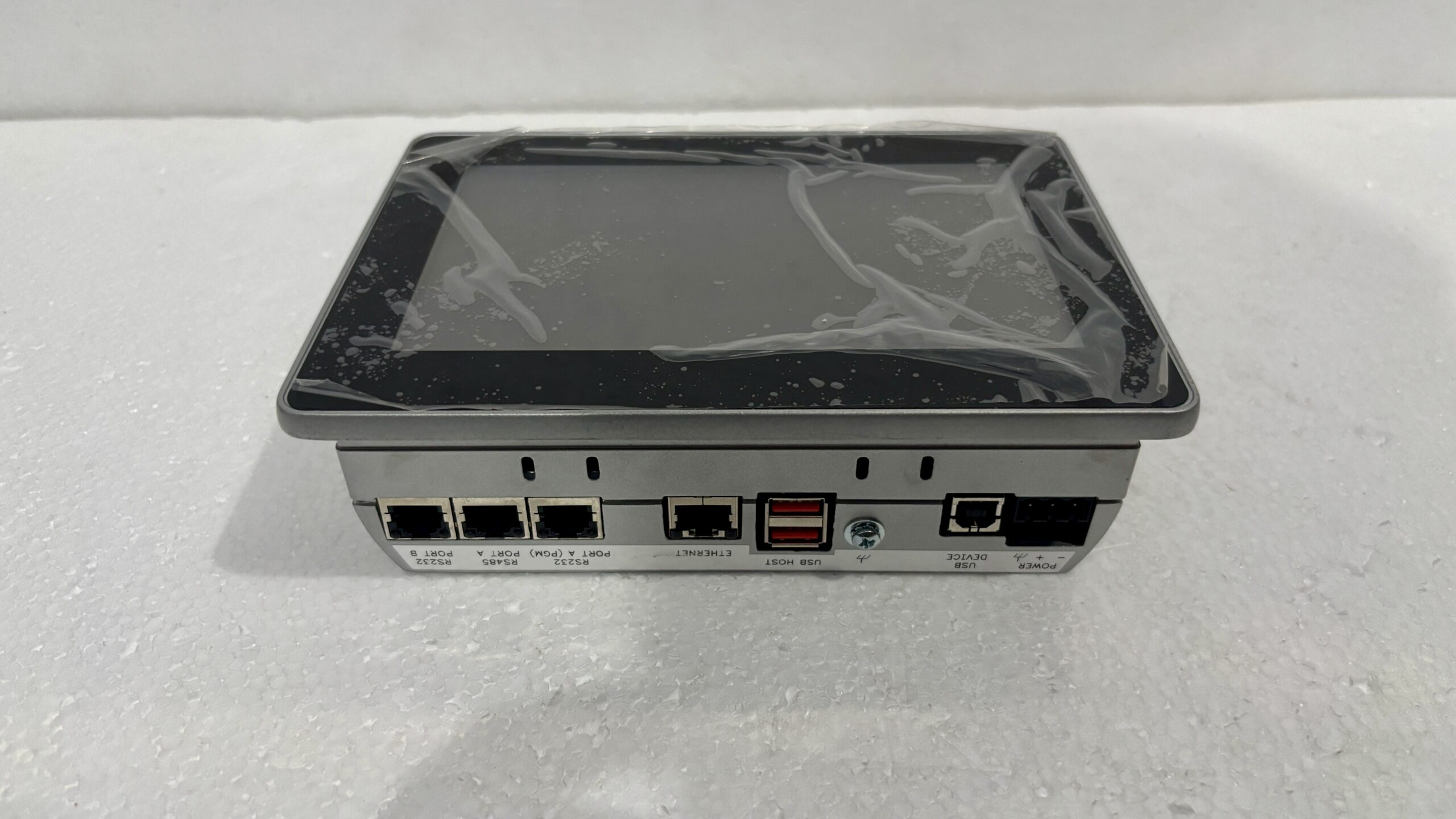

The rear of the unit features up to 5 modular expansion slots, allowing users to add communication modules (Ethernet, serial, PROFIBUS, DeviceNet) or I/O modules as required — making the G07S0000 highly adaptable without requiring a separate PLC. The built-in SD card slot enables data logging and application backup, while the Ethernet port provides network connectivity for SCADA integration, remote monitoring, and programming via Red Lion’s Crimson software.
📋 Key Specifications
| Brand |
Red Lion Controls |
| Model |
Graphite G07S0000 |
| Part Number |
G07S0000 |
| Display |
7-inch Color Touchscreen HMI |
| Power Supply |
Class 2 — 10V to 30V DC |
| Power Consumption |
15W max (no modules) / 36W max (5 modules) |
| Expansion Slots |
5 Modular Expansion Slots |
| Storage |
SD Card Slot |
| Temperature Range |
-20°C to +60°C |
| Enclosure Rating |
IP66 Type 4X |
| Hazardous Area |
Class I Div 2 / Class II Div 2 / Class III Div 2 |
| ATEX Certification |
DEMKO 14 ATEX 1387X / IECEx UL 15.0035X |
| Certifications |
UL Listed, CE, RoHS Compliant |
| Country of Origin |
USA (Red Lion Controls, York PA) |
| Date Code |
18NOV21 |
| Condition |
New open box |
| Source |
Alang Ship Recycling Yard, Bhavnagar, Gujarat, India |
⚙️ Key Features
- 7″ Color Touchscreen — Bright, clear display for easy operator interaction
- Modular Architecture — Up to 5 expansion slots for communication & I/O modules
- Multi-Protocol Support — Connects to PLCs, drives, and instruments from 300+ brands
- IP66 / Type 4X Rated — Suitable for washdown and outdoor marine environments
- ATEX / IECEx Certified — Approved for hazardous area installations
- SD Card Data Logging — Built-in data logging and application backup
- Crimson 3.x Software — Free programming software with unlimited tags
- Class 2 Power Supply — Wide voltage range 10–30VDC input
🚢 Where Is It Used?
- Marine vessel automation and engine room monitoring systems
- Offshore platform process control and SCADA operator stations
- Industrial machine building and factory automation panels
- Hazardous area control panels (ATEX Zone 2 / Class I Div 2)
- Water and wastewater treatment plant operator interfaces
- Oil & gas processing plant local control stations
- Replacement for existing Red Lion Graphite G07 HMI installations
⚠️ How To Check If G07S0000 Is Faulty

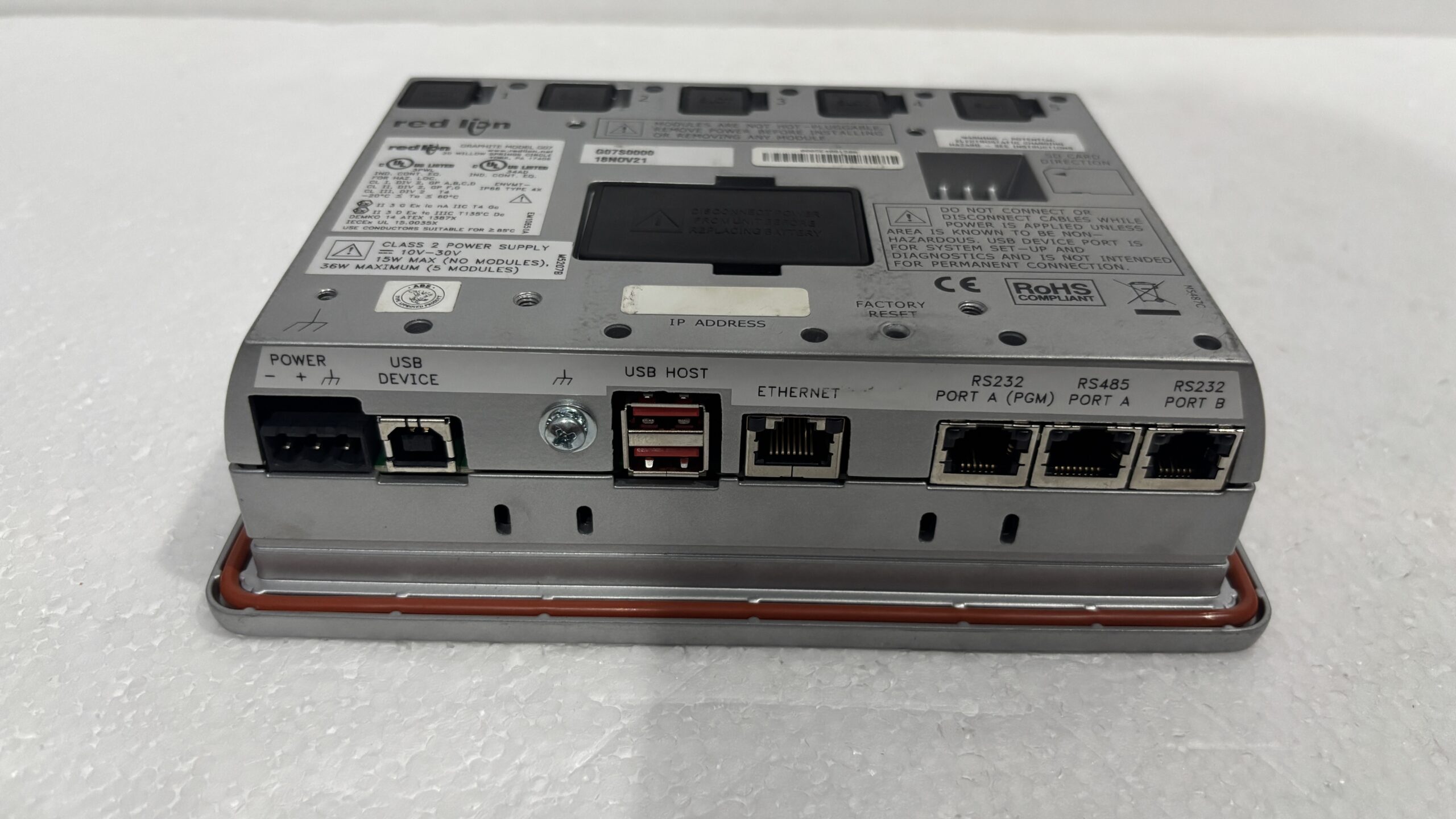

- Apply 10–30VDC Class 2 power supply to the power terminals on the bottom edge of the unit
- Verify the 7-inch display illuminates and shows the Red Lion Graphite boot screen or loaded application
- Connect via Ethernet to a PC running Red Lion Crimson 3.x software and verify communication is established
- Test the touchscreen by navigating through the loaded application — all touch zones should respond accurately
- Insert an SD card and verify the unit reads it correctly via the Crimson software file manager
- If installed, test each expansion module by verifying its LED status indicators and communication with Crimson
- If display does not illuminate, check power supply voltage and polarity at the power terminals
- If touchscreen is unresponsive, perform a factory reset using the Factory Reset button on the rear panel
- Note: Modules are NOT hot-pluggable — always remove power before installing or removing any module
